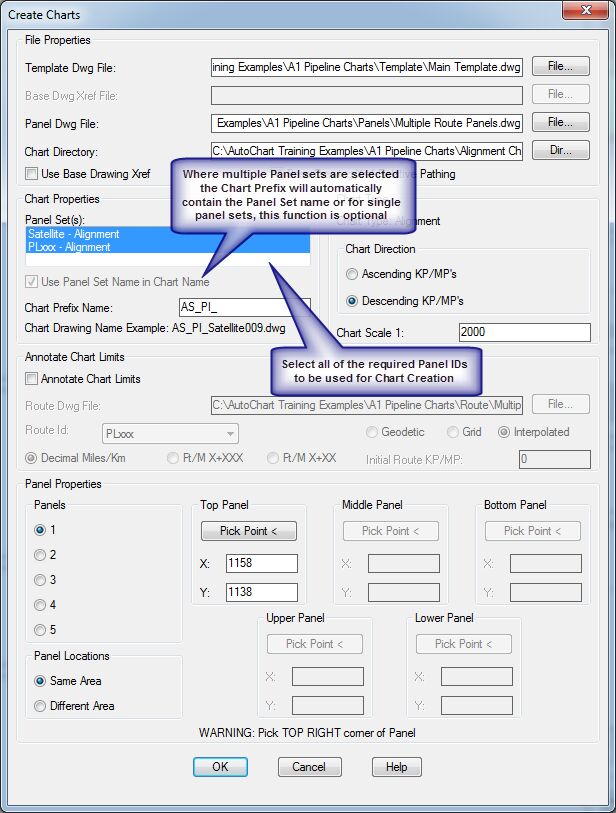

To work alongside the new Create Panels - Multiple Route command, the Create Charts command has been modified to work with multiple panel sets in a single operation. Previously the command could only create charts from a single panel set at a time, now however, rather than selecting a single panel ID from a drop down list, multiple entries can be selected from a text box list:

The Panel Set name will automatically be used in the Chart Prefix if Charts are created from multiple Panel Sets. If charts are created from a single panel set then this option can be turned on if required or the Chart Prefix name can be typed in explicitly.

Note that the Chart Direction is restricted to a common Kp direction for all of the selected panel sets. If differing directions are required (i.e. some charts with ascending Kps and others with Descending Kps) then the Create Charts command should be run in two batches according to the required Chart Direction with the selected Panels. Also, the selected Panel entities should be of the same type (i.e. all alignment panels) - it is not possible to mix alignment type panels with North up panels in the same Chart creation routine.
